  • Portable 2010 Vision Measurement Machine

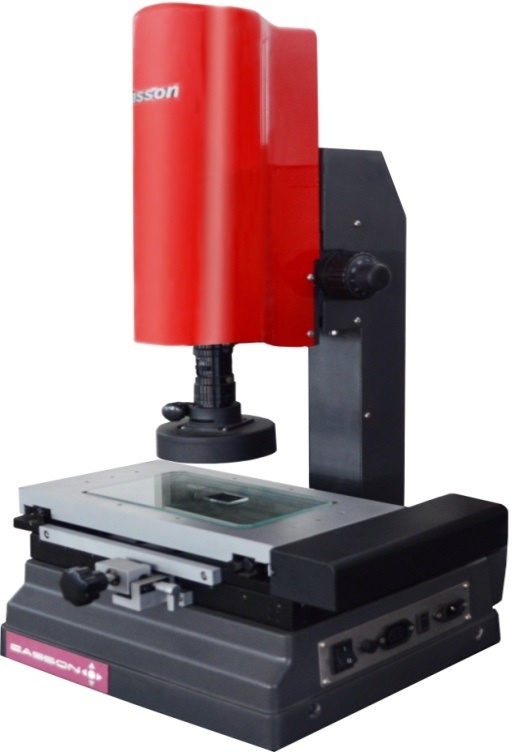

Portable 2010 Vision Measurement Machine

Portable 2010 Vision Measurement Machine

Easson Portable 2010 with small size,light weight,you can easily move it to office,factory…
Powerful software with all functions for 2D measurement, and can output the result to word, excel, DXF.Software controlled adjustable 4 zone surface light and straight adjustable contour light make sure you can see the parts more clearly.
Cast iron structure ensures long life accuracy.

Model Portable 2010
X,Y Measurement Travel 200x100x70 mm
Overall Dimensions 50x50x70 cm
Machine Weight 40 kg
Repeatability ±2 μm
Max Table Load 20 kg
Operation Model Manual
Resolution 1 μm
X,Y,Z Measurement Precision (4+ L/200) μm
Light source system Software controlled adjustable 8 zone surface light and straight adjustable contour light
Structure Cast iron
Lens High precision Tele-centric lens
Magnification Optical enlarging rate 0.7-4.5x, image enlarging rate 22-141x
Vision System 1/3” CCD
